Pressure Washer Nozzle Angles for Cars, Explained
The color-coded tips on your pressure washer aren't interchangeable. Which one is safe for paint, which is for soap, and which to leave in the box.
Most pressure washers ship with a handful of color-coded tips, and the instruction sheet says roughly nothing about which ones suit a car. So people guess, and the guesses go from harmless to paint-stripping.
The key idea is simple: the nozzle doesn’t change how much water comes out. It changes how concentrated that force is. The narrower the spray angle, the harder it hits a small area.

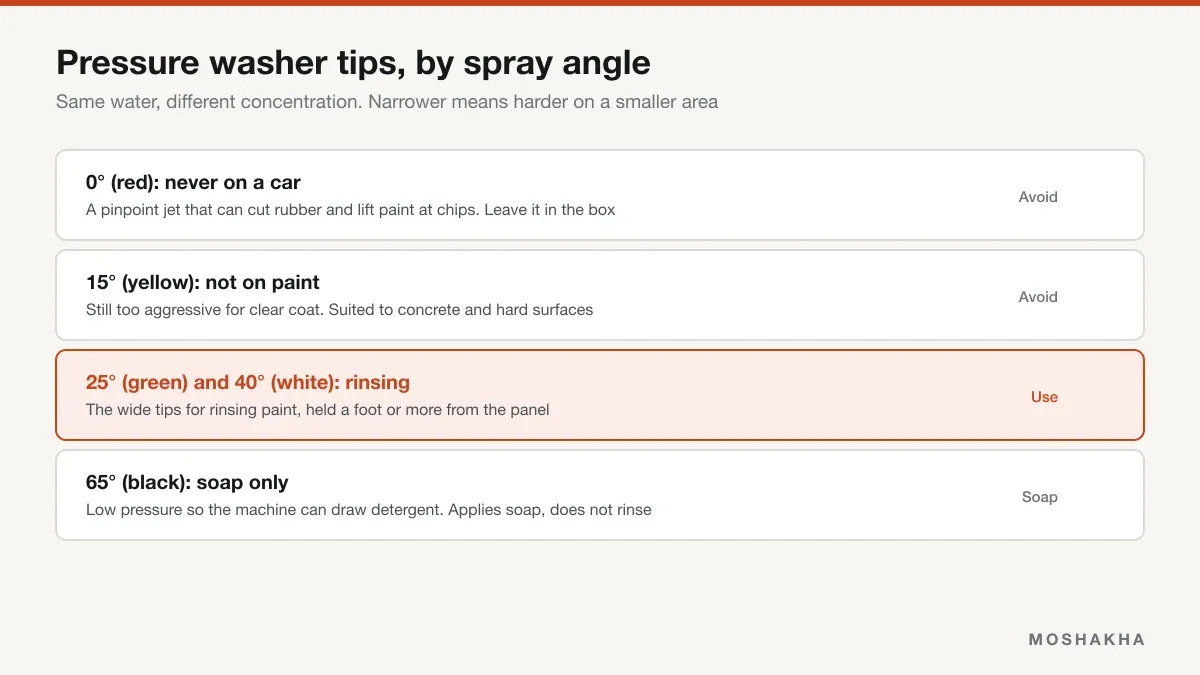

The usual color code
Brands vary slightly, but the convention is widely followed:
| Tip | Angle | Use on a car |
|---|---|---|
| Red | 0° | Never. A pinpoint jet. |
| Yellow | 15° | Not on paint. Too aggressive. |
| Green | 25° | Rinsing, at a safe distance. |
| White | 40° | The everyday paint rinse. |
| Black | 65° | Soap application. |
Always check your own machine’s markings, because not every manufacturer follows the convention and some include only a few tips.
Why the narrow tips are a problem
A tight jet doesn’t just clean dirt, it can do three things you don’t want:
- Damage rubber and trim, including seals and window gaskets.
- Lift paint at existing stone chips and edges, because the water gets underneath.
- Drive water past seals, into places like headlamp housings and door cards.
None of that cleans better, either. On a car, wider is almost always the right answer.
A sensible setup
- Soap application: the black tip, or a foam cannon if your machine supports one. Snow foam and shampoo are different jobs, and pre-foam is a rinse-first step rather than a replacement for washing.
- Rinsing paint: the 40-degree tip, held a foot or so back, sweeping rather than parking on one spot.
- Wheel arches and mud: the 25-degree tip is reasonable here, since it’s not paint.
The full breakdown of which machines suit car washing is in our pressure washer guide, and the review of a popular electric model is here.
Bottom line
Use the wide tips, keep your distance, and leave the red one in the box. Pressure isn’t what makes a car wash work; lubrication and technique are.
Frequently asked questions
What pressure washer nozzle is safe for car paint?
The wide-angle tips, typically 25 degrees and 40 degrees, are the ones used for rinsing paint. Keep them at a sensible distance rather than right against the panel. The narrow tips are for concrete and hard surfaces, not paintwork.
Which nozzle should I never use on a car?
The 0-degree tip, usually red. It concentrates the whole flow into a pinpoint and can cut into rubber, strip paint at chips, and force water past seals. Most people are better off never attaching it to a car at all.
What is the black nozzle for?
It's the low-pressure soap tip. It widens the spray and drops the pressure so the machine can draw detergent through its siphon. It is for applying soap, not for rinsing.
How far should I hold the nozzle from the paint?
Further than feels necessary at first. A foot or more is a sensible starting point, closer only on a wide-angle tip for stubborn areas like wheel arches, and never at paint chips, stickers, or damaged clear coat where water can get under an edge.
